How to Replace Sway Bar Links On a Volvo S70/V70/C70 (P80)
Clunk....clunk. The noise of a bad suspension looms. Whether it be a bad ball joint, spring seat, or sway bar link, something is worn out. When accompanied by a bump in the road, this noise most often indicates there is "play" somewhere in the suspension. This play is usually just audible at first, but can worsen to introduce soggy steering and body movement into the chassis.
My 2004 Volvo C70 is a bit noisy pulling into the driveway at times, and rough roads create some pretty interesting sounds. Luckily, this repair is probably the easiest suspension repair one can make, and if the links aren't the problem, you aren't out much cash.
Tools
- 17mm socket/wrench
- T30 Torx Bit
- Penetrating Lubricant
Parts

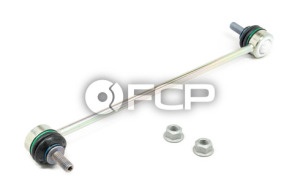

Volvo Sway Bar Link Front (C70 S70 V70 850) - Lemforder 31212730
Volvo Sway Bar Link Front (C70 S70 V70 850) - Meyle HD 31212730
Procedure

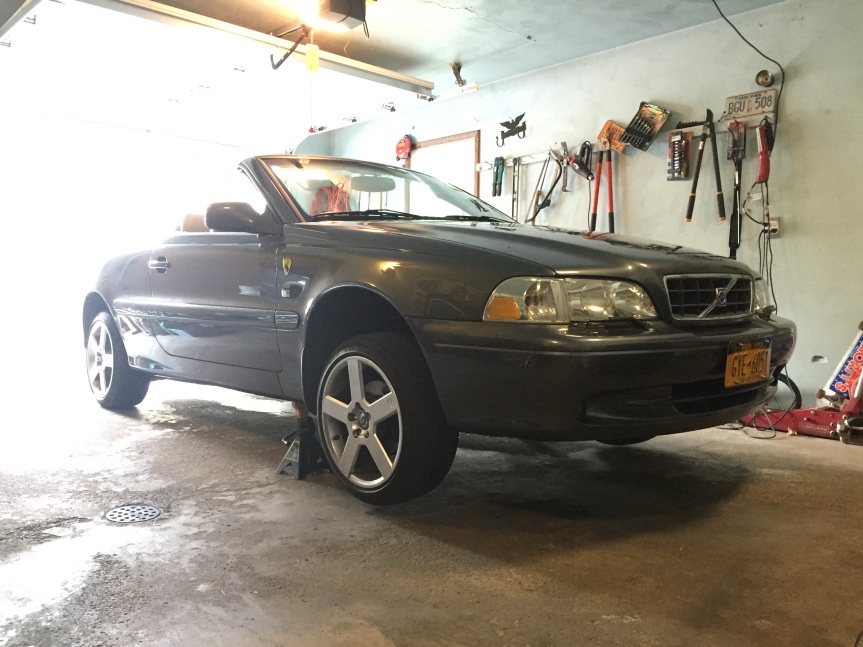

This repair requires the front of the vehicle to be supported on jack stands. If only one side of the car is raised, the sway bar will be preloaded from the opposite side making removal impossible. With both sides in the air, remove the front wheels.

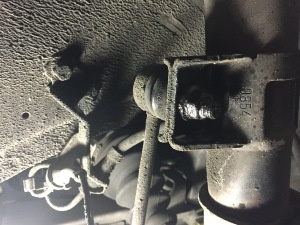

Soak the threads in penetrating oil for a few minutes

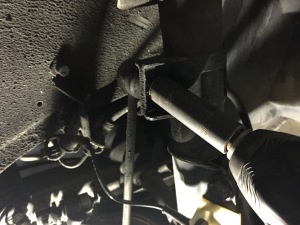

I use an electric impact to break the nut free initially, if you don't have one, just crack it with a ratchet. Once the nut is cracked, the ball joint in the link will just spin, so don't expect it to come off just yet.
The original links on my convertible use a 15mm nut over a T30 torx stud. Newer links may use 16mm or 17mm - it varies.

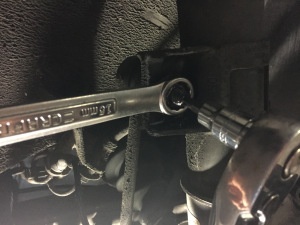

Slowly remove the nut using the box wrench as a counter-hold. Install the new links in the same fashion, torquing the nut to 37ft-lbs, or "pretty snug."
