How to Replace a Volvo Cabin Air Filter (P80)
A while back I saw a great write-up on the purpose of and reasoning behind replacing the cabin air filter with a reasonable frequency.
This is a really quick job taking no more than 10-15 minutes. The cabin filter is also a very affordable replacement part, available in a variety of brands and specs.
Tools:
- T25 Torx
- Socket Wrench
- Flat blade screw driver
- Big pliers or vice grips

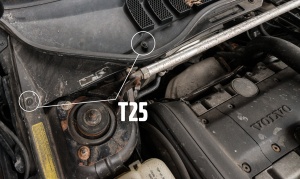

Open the hood and locate the two T25 torx screws fastening the cowl over the cabin air filter. Clean out leftover leaves and muck blocking the cowling air intake as well as the drain hoses. Some cars will have a large clamp holding the drain tubes onto the cowl. This may interfere with lifting it up - Vice grips or pliers work well to free these.
With the two T25 screws removed the cowl is now loose and can be gently pulled down and then up. Pulling down slightly will free the top section from lower windshield slot. The only thing holding in the filter is a release tab that should be facing you. One is not visible in the picture provided here as I broke mine immediately when trying to remove it by hand (15°F weather will do that). Using my hand as a wedge to hold the cowl up I took a screwdriver and popped the filter up and out. It does fit out just fine through this tiny gap and the new one will rest in the same orientation.
[gallery columns="2" size="medium" ids="8531,8532"]
Return the cowl and screws to their previous locations, refit the weather stripping if it has come loose and re-attach the drain tube. While you're in this side of the car it is a great time to check on the health of the oil, coolant and expansion tank, as well as the power steering reservoir. (99+ models can suffer from bloating)
